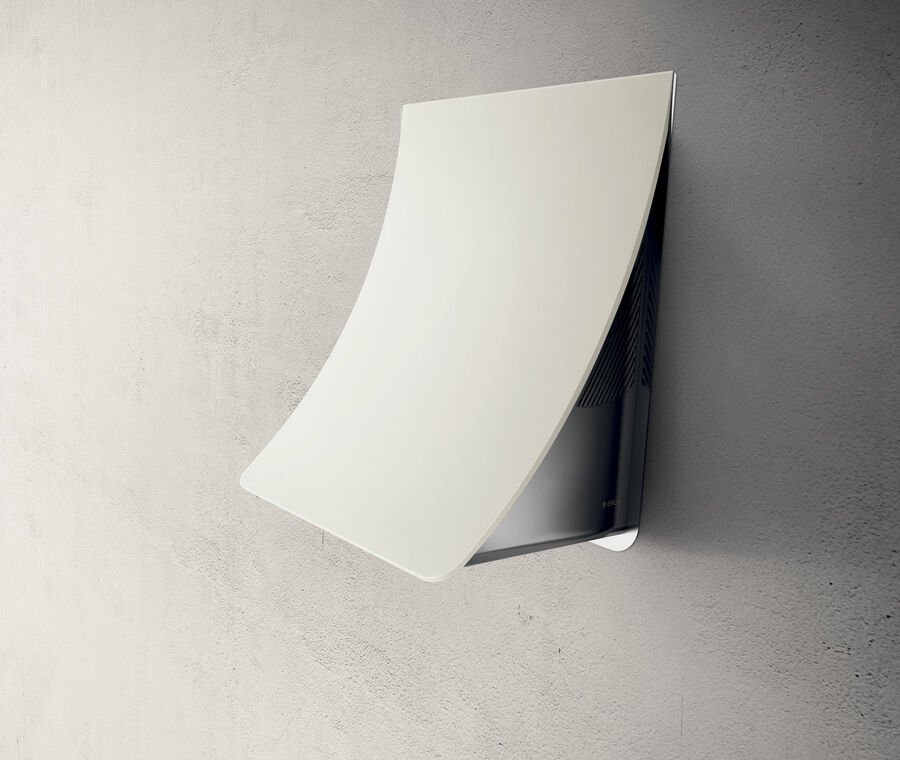

Wall hood cm. 75 – can be paneled – Elica – can be paneled
Impalpable, like a cloud, it is the maximum expression of discretion. The first hood that can be perfectly integrated into the kitchen architecture, camouflaged with the wall. Sinuous shapes and high customization make Nuage an absolutely unique product.

Technical features
WIDTH 75 cm
ENERGY CLASS A
MEASURES 75 cm
VERSION Aspirating or filtering (for the filtering version, the CFC0140343 or CFC0162221 carbon filters must be purchased separately from the Accessories)
FINISH AISI 430 stainless steel panelable with plasterboard (not included)
CONTROLS 3V + I electronic rotary
LIGHTING Strip Led 1×7 W – 4000 K – 141 LUX
TOTAL ABSORPTION 227 W
SOUND LEVEL 62 db (A)
EXIT 150 mm

ACCESSORIES INCLUDED
– Aluminum grease filter
– Charcoal filter

OPTIONAL ACCESSORIES (available separately from the Accessories)
– CFC0140343 carbon filter
– Regenerable carbon filter CFC0162221

NUAGE LINE
The Nuage external panel can be covered with plasterboard, tiles or paint to create a perfect symbiosis between the hood and the environment in which it is inserted. Nuage is available in a filter version, but it can become a suction with back suction installation . Equipped with intuitive electronic rotary control, with high performance and high efficiency motor and LED strip lighting.

BACK ASPIRATION
The installation possibilities of your hood expand. On models equipped with this function, it is possible to rotate the conveyor and connect the hood directly to the outlet in the rear wall or in other models the particular architecture of the product allows the outlet to be made on the wall through a 90 degree bend in the pipe. In this way you can count on maximum suction, preserving the original aesthetics of the product, which will not be modified by additional pipes or chimneys on sight.

LONG LIFE FILTER
To ensure optimal performance of the hood and its durability over time, the traditional filters must be replaced every 3/6 months. To simplify maintenance activities, Elica has designed the innovative Long Life regenerable odor filter that allows a duration of up to 3 years. Just wash it in hot water and neutral soap or in the dishwasher at 65  and dry it in the oven at 100  for 10 minutes every 2 months, to always have it as new. The efficiency level is around 60%.
